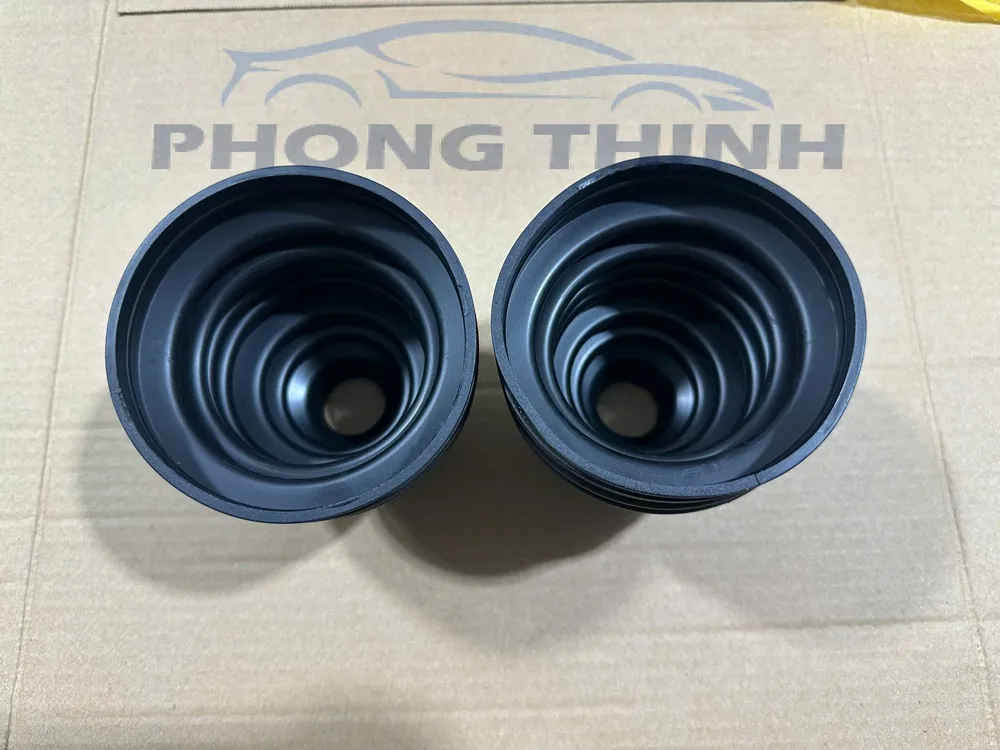

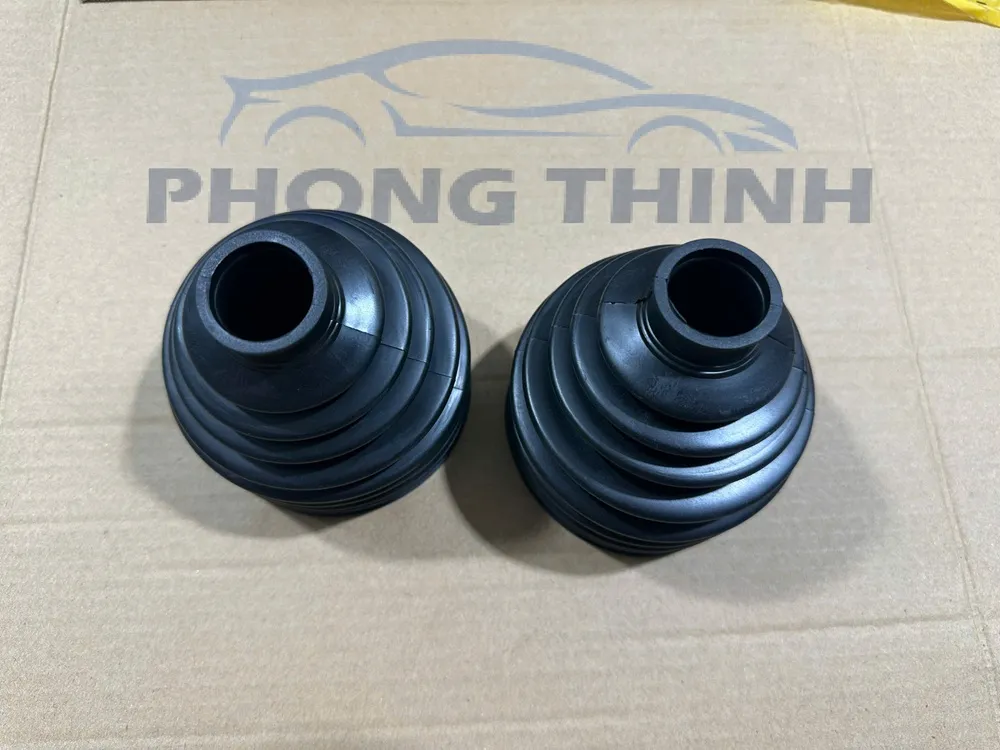

Outer CV Joint Boot for Ford Ranger Mazda BT50 2013-2020 TOK TOK1655

Outer CV joint boot for Ford Ranger Mazda BT50 2013-2020 model TOK1655 is an important component of the drivetrain, fitted on the outside of the CV joint at the wheel driveshaft end. This part protects the joint from dirt, water, mud and other harmful environmental factors, while keeping the grease inside to ensure smooth operation.

On Ford Ranger and Mazda BT50 models from 2013-2020, the outer CV joint often operates under heavy load and continuously changes angle when the vehicle is steered or driven on rough terrain. That is why the driveshaft boot plays a very important role in protecting internal mechanical parts from wear and damage.

The boot is made from specialized rubber with good elasticity, heat resistance, grease resistance and effective anti-aging performance. Its multi-rib design allows the boot to flex with steering and suspension movement while maintaining optimal sealing.

After a period of use, the boot may crack, tear or age due to temperature, environment and operating conditions. When this happens, grease can leak out, while dirt and water can enter the CV joint, causing wear, steering noise and reducing the life of the driveshaft assembly.

TOK TOK1655 is manufactured to OEM standards, ensuring precise dimensions, high sealing performance and full compatibility with Ford Ranger and Mazda BT50 2013-2020.

Product information

• Product name: Outer CV joint boot / Outer CV Joint Boot
• Part number: TOK1655
• Brand: TOK
• Applicable vehicles: Ford Ranger, Mazda BT50
• Model years: 2013-2020
• Installation position: Outer driveshaft end (outer CV joint)
• System: Drivetrain
• Condition: New

Functions and role

• Protects the CV joint from dirt and water
• Keeps grease inside the driveshaft joint
• Reduces friction and limits wear on drivetrain parts
• Extends the life of the CV joint and driveshaft axle
• Ensures stable drivetrain operation

Key advantages

• High-quality rubber with good elasticity
• Effective heat and grease resistance
• Good sealing performance, helps prevent grease leakage
• Resistant to cracking and aging during use
• OEM-standard size for accurate fitment

Signs it needs inspection or replacement

• The boot is cracked or torn
• Driveshaft grease is leaking around the wheel area
• A clicking noise is heard when steering
• The CV joint shows unusual wear signs
• Dirt or water has entered the driveshaft joint
• The boot has become hard or deformed

👉 The outer driveshaft boot is a small part, but it plays a very important role in the life of the CV joint and drivetrain. If the boot is damaged, it should be replaced promptly to avoid major repair costs for the driveshaft assembly.

Replacement recommendations

• Use the correct TOK1655 part for Ford Ranger and Mazda BT50 2013-2020
• Clean the CV joint thoroughly before installing the new boot
• Replace with new specialized driveshaft grease when changing the boot
• Check the condition of the CV joint and related driveshaft axle
• Replace the clamp to ensure optimal sealing
• Prefer OEM-quality products for long-lasting durability and protection.
